> Low surface temperature
> Double insulated (plastic housing)
> Wide voltage range
> Dynamic heating up
> Clip fixing
The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.
Technical Data
CSK 060 | |
Operating voltage | 120-240V AC/DC¹ (min. 110V, max. 265V) |
Heating element | PTC resistor - temperature limiting |
Surface temperature | < +85°C (+185°F) (according to VDE 0100), except upper protective grille |
Connection | 2-pole terminal 2.5mm², torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail, EN 60715 |
Fitting position | vertical airflow (air outlet up, connection on bottom) |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Note | other voltages on request |
¹ Operating with voltages below 140V AC/DC reduces heating performance by approx 10%.

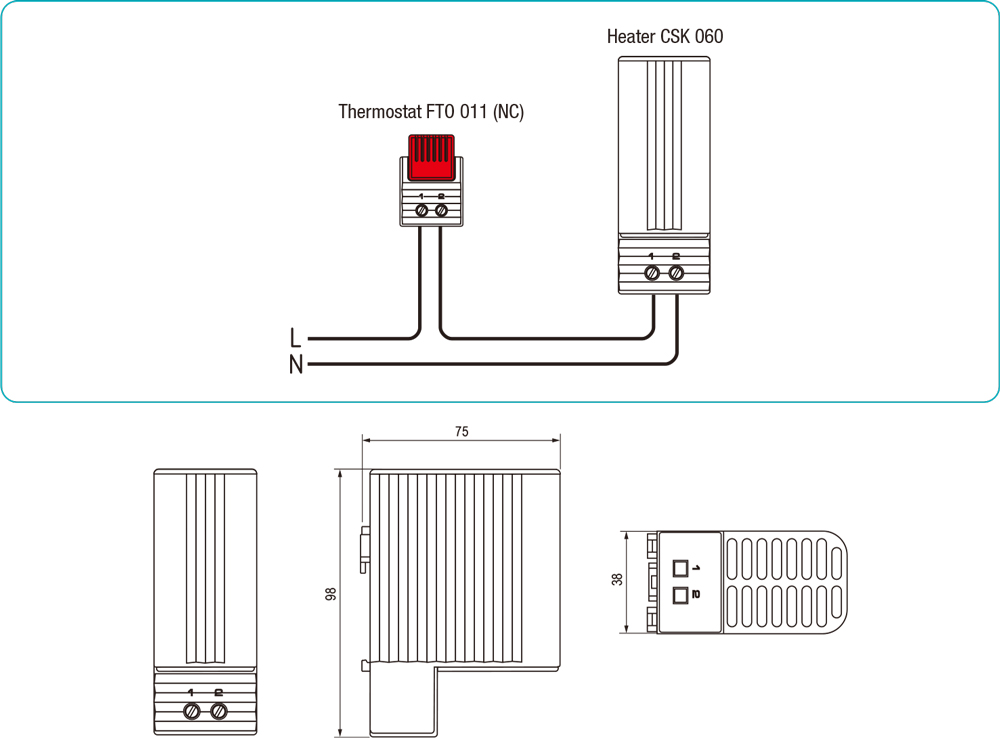

Example of connection
Art. No. | Heating capacity² | Dimensions | Weight (approx.) |
06040.0-00 | 10W | 98 x 38 x 75mm | 0.2kg |
06030.0-00 | 20W | 98 x 38 x 75mm | 0.3kg |
² at +20°C (+68°F) ambient temperature
