> Small, compact design
> Quiet in operation
> Dynamic heating up
> Clip or screw fixing
Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of the CS / CSL 028 makes it ideal for use in enclosures where space is at a premium.
Technical Data
CS 028 / CSL 028 | |
Heating element | PTC resistor - temperature limiting |
Surface temperature | 150W/250W: max. +50°C (+122°F), 400W: max. +65°C (+149°F) each except upper protective grille at +20°C (+68°F) ambient temperature |
Axial fan, ball bearing | air flow, free flow CS 028: 13.8m³/h; CSL 028: 45m³/h (230VAC), 54m³/h (120VAC) service life 40,000h at +40°C (+104°F) |
Connection | 2-pole clamp max. 2.5mm² (CSL 028 with strain relief), clamping screw torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm) |
Fitting position | vertical airflow (air outlet up) |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Note | other voltages on request |

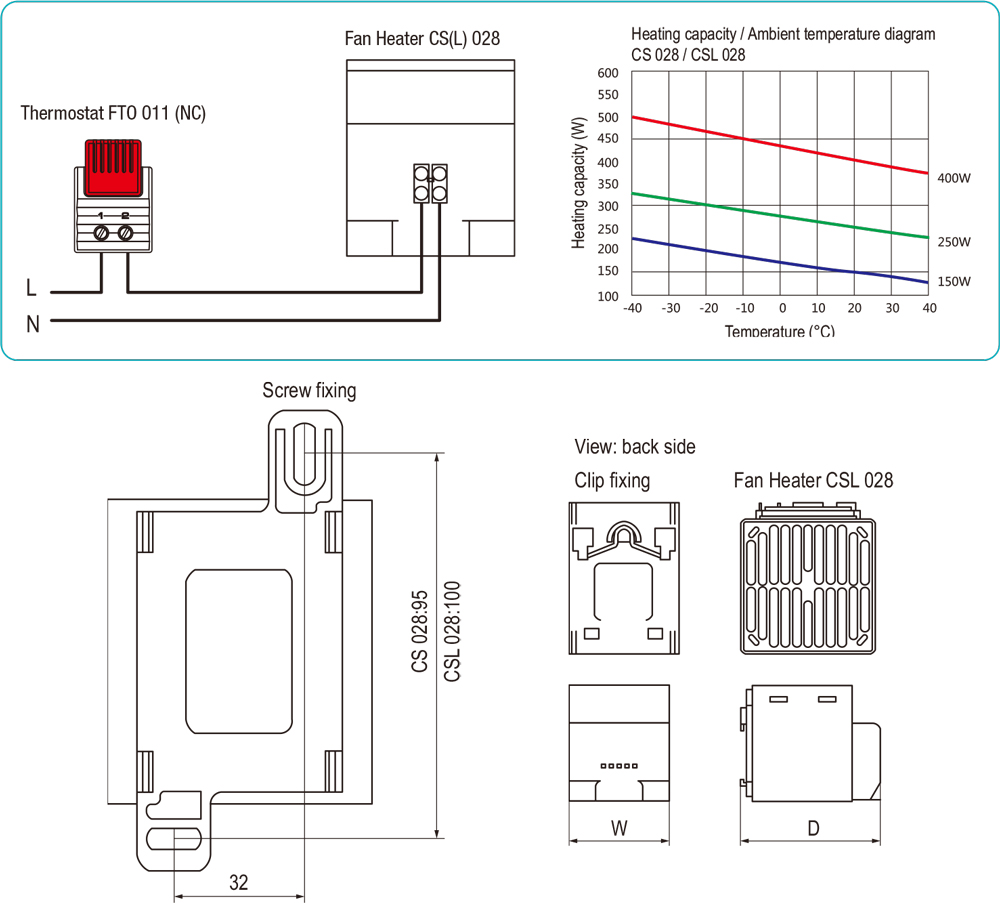

Examples of connection
Art. No. | Heating capacity¹ | Operating voltage | Dimensions | Weight (approx.) |
02800.0-00(01) | 150W | 230VAC, 50/60Hz | 75 x 65 x 90mm | 0.3kg |
02811.0-00(01) | 250W | 230VAC, 50/60Hz | 90 x 85 x 111mm | 0.5kg |
02810.0-00(01) | 400W | 230VAC, 50/60Hz | 90 x 85 x 111mm | 0.5kg |
02800.9-00(01) | 150W | 120VAC, 50/60Hz | 75 x 65 x 90mm | 0.3kg |
02811.9-00(01) | 250W | 120VAC, 50/60Hz | 90 x 85 x 111mm | 0.5kg |
02810.9-00(01) | 400W | 120VAC, 50/60Hz | 90 x 85 x 111mm | 0.5kg |
¹ at +20°C (+68°F) ambient temperature
Note: 00-clip fixing; 01-screw fixing
