> Compact design
> High heating performance
> Double insulated
> Integrated thermostat
> Optional clip or screw fixing
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat for temperature control. The CR 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CR 030 is recommended.
Technical Data
CR 130 | |
Heating element | PTC resistor - temperature limiting |
Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
Axial fan, ball bearing | airflow 160m³/h, free flow service life 50,000h at +25°C (+77°F) |
Connection | 2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail, EN 60715 or screw fixing (M6) |
Fitting position | vertical airflow (air outet up) – other fitting positions possible |
Dimensions | 182 x 160 x 120mm |
Weight | approx. 1.3kg |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
¹ Operating temperature of heater with integrated hygrostat: 0 to +60°C (+32 to +140°F).

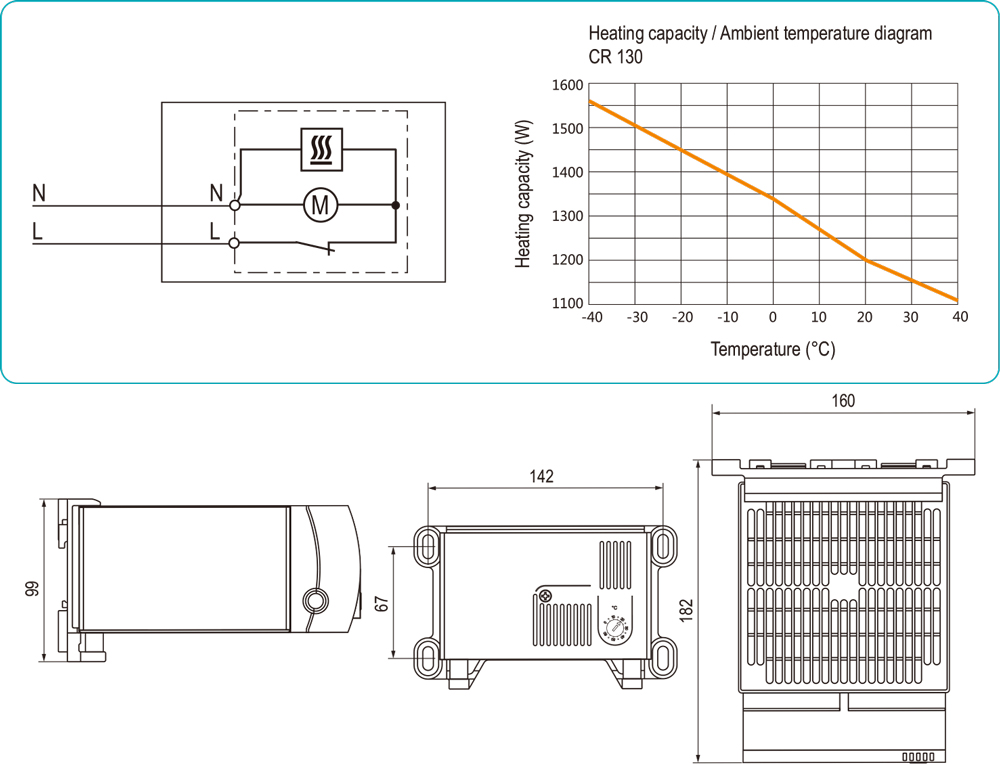

Examples of connection
Art. No. | Model | Operating voltage | Heating capacity¹ | Setting range² |
13051.0-00 | Fan Heater with thermostat | 230VAC, 50/60Hz | 800W | 0 to +60°C |
13052.0-00 | Fan Heater with thermostat | 230VAC, 50/60Hz | 900W | 0 to +60°C |
13053.0-00 | Fan Heater with thermostat | 230VAC, 50/60Hz | 1000W | 0 to +60°C |
13054.0-00 | Fan Heater with thermostat | 230VAC, 50/60Hz | 1200W | 0 to +60°C |
13051.9-00 | Fan Heater with thermostat | 120VAC, 50/60Hz | 800W | +32 to +140°F |
13052.9-00 | Fan Heater with thermostat | 120VAC, 50/60Hz | 900W | +32 to +140°F |
13053.9-00 | Fan Heater with thermostat | 120VAC, 50/60Hz | 1000W | +32 to +140°F |
13054.9-00 | Fan Heater with thermostat | 120VAC, 50/60Hz | 1200W | +32 to +140°F |
¹ at +20°C (+68°F) ambient temperature; ² Switch temperature difference 7K (±4K tolerance)
