Axial fan, ball bearing

service life L10 at +40°C (+104°F): min. 65,000h fan body aluminium, rotor metal

Connection

3-pole clamp for 2.5mm², clamping torque 0.8Nm max.

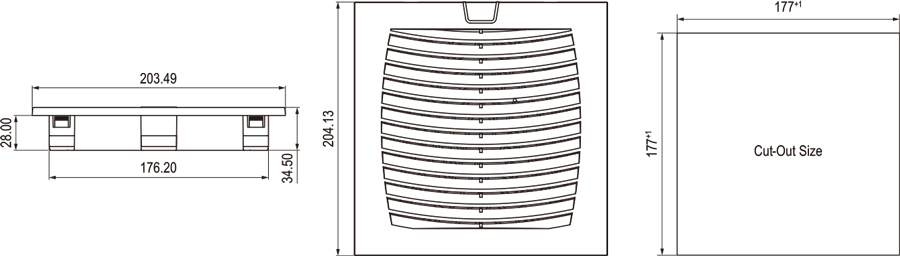

Enclosure cut-out

177×177⁺¹ mm

Mounting frame

4 built-in ratchet braces for mounting (6 notches for wall thickness 1-4mm).

additional use of screws possible if needed.

Filter mat

F5 acc. to DIN EN 779, filtering degree 98%

Filter material

ABS or PC/ABS with UL listed and RoHS

Operating/Storage temperature

-25 to +65°C (-13 to +149°F) / -40 to +70°C (-40 to +158°F)

Operating/Storage humidity

max. 90% RH (non-condensing)

Protection type/Protection class

IP55 / I (earthed)

FCF204A-F5-230A-C

230VAC

120×120×38

112

66

16

0.07

42

FCF204A-F5-230B-C

230VAC

120×120×25

162

95

21

0.12

48

FCF204-F5-230C-C

230VAC

150×150×50

336

198

26

0.23

59

FCF204-F5-230D-C

230VAC

Ø172×51

336

198

26

0.23

59

FCF204-F5-230E-C

230VAC

172×150×51

336

198

30.6

0.23

59

FCF204A-F5-115A-C

115VAC

120×120×25

112

66

15

0.14

42

FCF204A-F5-115B-C

115VAC

120×120×38

162

95

21

0.22

48

FCF204-F5-115C-C

115VAC

150×150×50

336

198

28

0.5

59

FCF204-F5-115D-C

115VAC

Ø172×51

336

198

26

0.48

59

FCF204-F5-115E-C

115VAC

172×150×51

336

198

30.6

0.5

59

FCF204A-F5-D1-C

120&230VAC

120×120×38

138/162

100

19/15

0.18/0.12

43/48

FCF204-F5-D2-C

120&230VAC

172×150×51

272/316

200

26/28

0.13/0.11

52/62

FCF204A-F5-400A-C

400VAC

120×120×38

162

95

21

0.07

44

FCF204-F5-400B-C

400VAC

150×150×50

336

198

26

0.13

59

FCF204-F5-400C-C

400VAC

Ø172×51

336

198

26

0.13

59

FCF204-F5-400D-C

400VAC

172×150×51

336

198

30.6

0.13

59

FCF204A-F5-12A-C

12VDC

120×120×38

180

120

7.2

0.6

48

FCF204-F5-12B-C

12VDC

172×150×51

374

260

12

1

62

FCF204A-F5-24A-C

24VDC

120×120×38

180

120

9.6

0.4

48

FCF204-F5-24B-C

24VDC

172×150×51

374

260

12

0.5

48

FCF204A-F5-48A-C

48VDC

120×120×38

180

120

9.6

0.2

48

FCF204-F5-48B-C

48VDC

172×150×51

374

260

12

0.25

48
