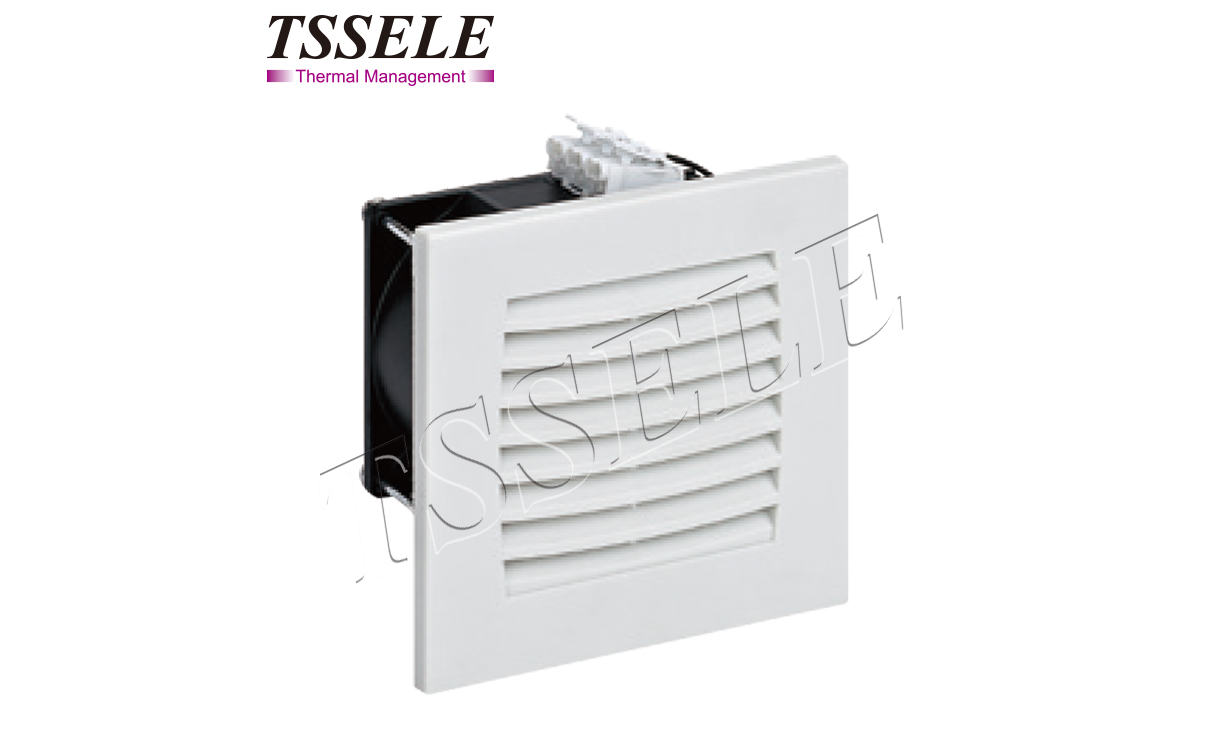

Axial fan, ball bearing

service life L10 at +40°C (+104°F): min. 50,000h fan body aluminium, rotor metal

Connection

2 stranded wires, 300mm

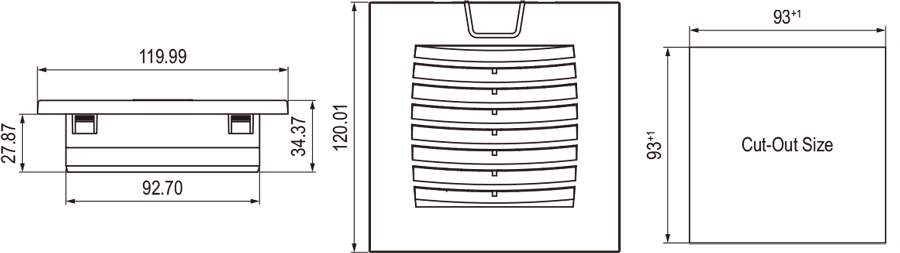

Enclosure cut-out

93×93⁺¹ mm

Mounting frame

4 built-in ratchet braces for mounting (6 notches for wall thickness 1-4mm)

additional use of screws possible if needed.

Filter mat

G4 acc. to DIN EN 779, filtering degree 94%

Filter material

ABS or PC/ABS with UL listed and RoHS

Operating/Storage temperature

-25 to +65°C (-13 to +149°F) / -40 to +70°C (-40 to +158°F)

Operating/Storage humidity

max. 90% RH (non-condensing)

Protection type/Protection class

IP54 / I (earthed)

Function

with EMC function

FCF120-EMC-230A-C

230VAC

80×80×25

39

23

14

0.07

30

FCF120-EMC-230B-C

230VAC

80×80×38

48

32

14

0.09

30

FCF120-EMC-115A-C

115VAC

80×80×25

39

23

14

0.12

30

FCF120-EMC-115B-C

115VAC

80×80×38

48

32

14

0.14

30

FCF120-EMC-D-C

120&230VAC

80×80×38

39/48

26

13/10

0.078/0.062

27/30

FCF120-EMC-12-C

12VDC

80×80×38

84

30

4.8

0.4

30

FCF120-EMC-24-C

24VDC

80×80×38

84

30

4.8

0.2

30

FCF120-EMC-48-C

48VDC

80×80×38

84

30

4.8

0.1

30
