General Specification

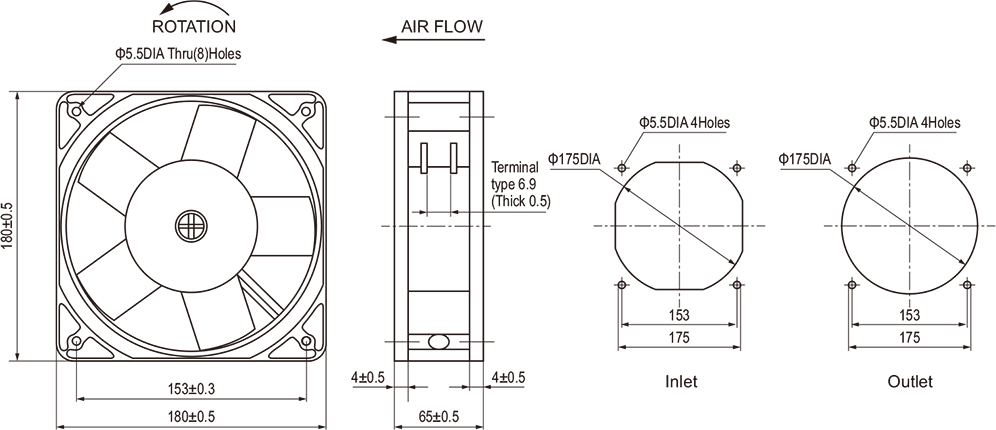

Size: 180×180×65mm

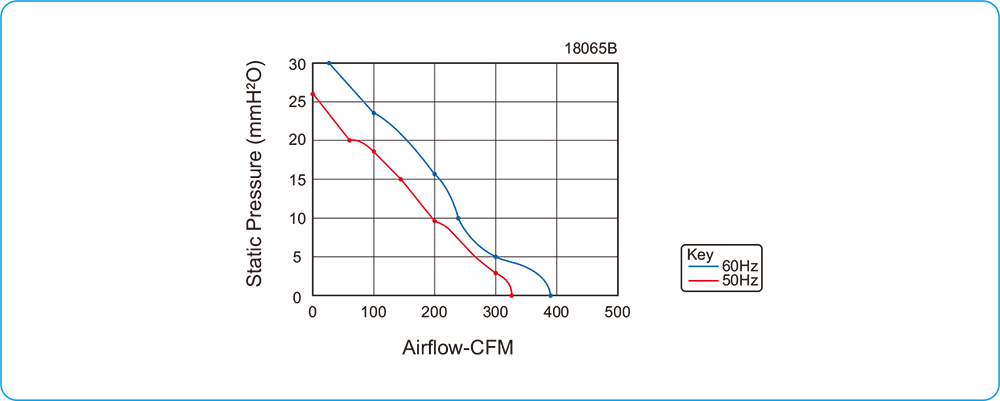

Airflow: 586~671m3
/hr 345-395CFM
Weight: 1188g
Noise: 63-68dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#22
Motor: Capacitor-Run Induction Motor
Operation Temperature: -10°C~+70°C
Specific Parameters
Art. No. | Bearing Type | Voltage (V) | Freq. (Hz) | Current (A) | Power (W) | Speed (RPM) | Noise (dBA) | Air Flow | Phase | |
M3/hr | CFM | |||||||||
NA18065-110B-(MG/FG) | Ball | 110 | 50/60 | 0.50 | 45 | 2600 | 68 | 671 | 395 | 1 |
NA18065-230B-(MG/FG) | Ball | 230 | 50/60 | 0.22 | 45 | 2600 | 68 | 671 | 395 | 1 |
"B" means Ball,
Current, Speed can be customer made
