General Specification

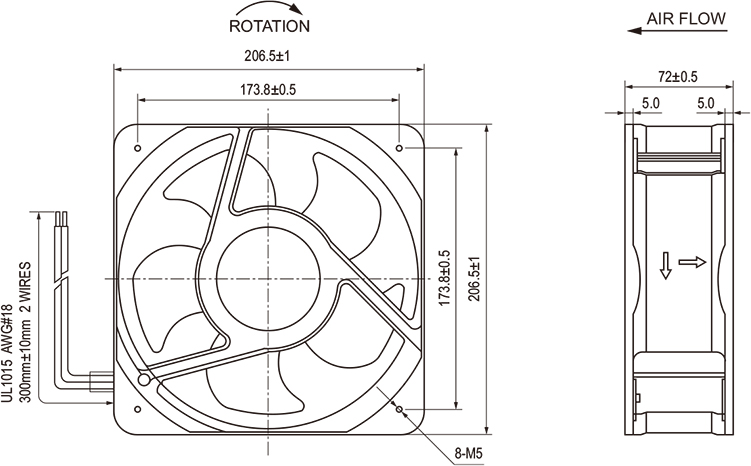

Size: 205×205×72mm
Airflow: 905~1248m3
/hr 533-735CFM
Weight: 2100g
Noise: 61~68dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#24
Motor: Capacitor-Run Induction Motor
Operation Temperature: -10°C~+65°C
Specific Parameters

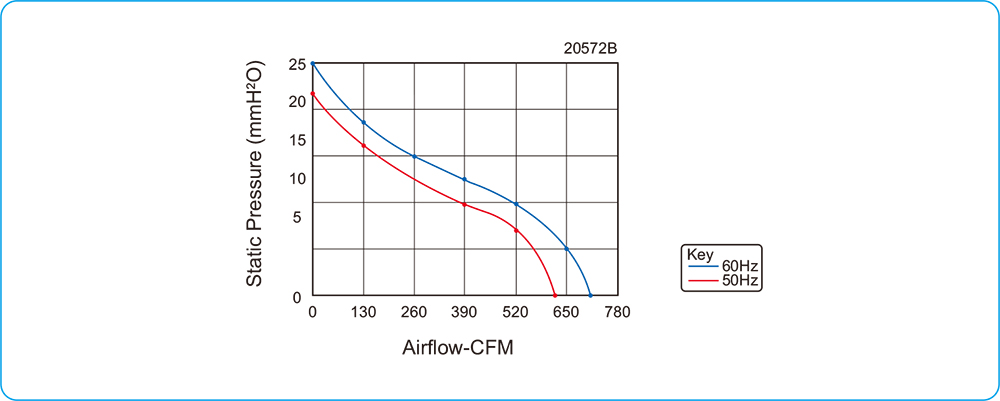

Art. No. | Bearing Type | Voltage (V) | Freq. (Hz) | Current (A) | Power (W) | Speed (RPM) | Noise (dBA) | Air Flow | Phase | Capacito | |
M3/hr | CFM | ||||||||||
NA20572-110B | Ball | 110 | 50/60 | 0.80 | 88 | 2850 | 68 | 1092 | 643 | 1 | 10μf/250V |
NA20572-230B | Ball | 230 | 50/60 | 0.35 | 68 | 2850 | 68 | 1092 | 643 | 1 | 5μf/250V |
"B" means Ball,
Current, Speed can be customer made
