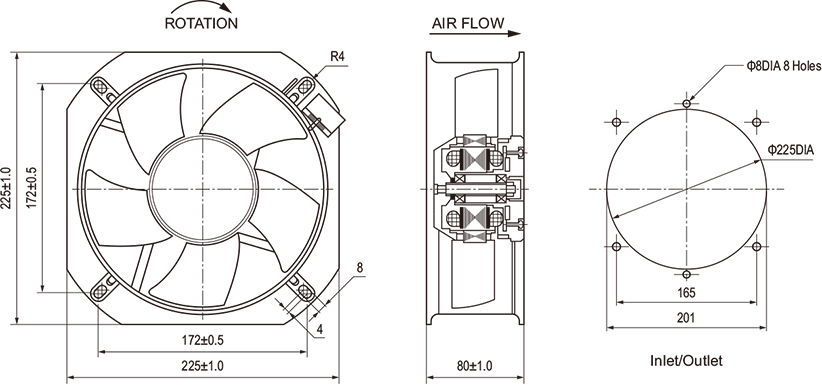

DA22580 DC Fan 225×225×80mm
Quantity:
Price inquiry Join the inquiry basket
Product description

General Specification

Airflow: 950m3/hr, 558CFM

Noise: 68dBA

Impeller: Sheet Galvanized

Frame: Aluminum Alloy

Lead Wire: The Mostable Wire

Motor: BLDC

Operation Temperature:-25°C~+60°C




Art. No.

#
Bearing
Type

Rated
Voltage
(VDC)

Operating
Voltage
(VDC)

Current
(A)

Power
(W)

Speed
(RPM)

Air Flow Air

Air
Pressure
(Pa)

Noise
(dB-A)

Weight
(g)

m3/hr

(CFM)

DA22580-24B

Ball

24

16~28

2.43

50

2750

950

558

220

68

2450

DA22580-48B

Ball

48

36~61

1.18

50

2750

950

558

220

68

2450
