General Specification

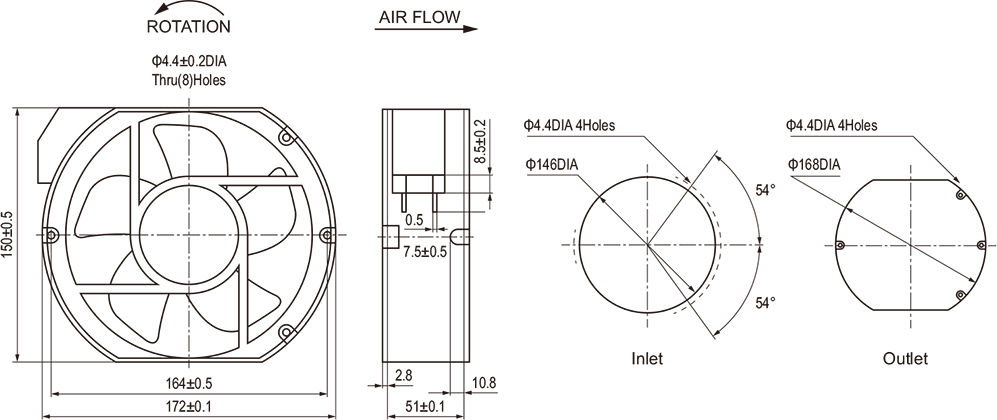

Size: 172×150×51mm
Airflow: 319~399m3
/hr 188-235CFM
Weight: 870g
Noise: 52~62dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#22
Motor: Shaded Pole Induction Motor
Operation Temperature: -10°C~+70°C
Specific Parameters
Art. No. | Bearing Type | Voltage (V) | Freq. (Hz) | Current (A) | Power (W) | Speed (RPM) | Noise (dBA) | Air Flow | Phase | Capacitor | |
M3/hr | CFM | ||||||||||
NA17050C-230B | Ball | 230 | 50/60 | 0.23 | 30.6 | 2730 | 59 | 336 | 198 | 1 | 0.75-500V |
"B" means Ball,
Current, Speed can be customer made
