• Simple Filter
• IP40
• ABS Material
The three in One Simple Filter can be use for any place that want to purifying dirty air, also can fit with fan, we can offer different size to match with different fans.
Technical Data
TSS-F80B, 92B, 110B, 120B, 150B, 172B1,172B2, 180B, 200B | |
Material | ABS |
Scope | room temperature from -10 to 55 degree |
Color | black |
Dust removal rate | 89% |
IP Code | IP40 |

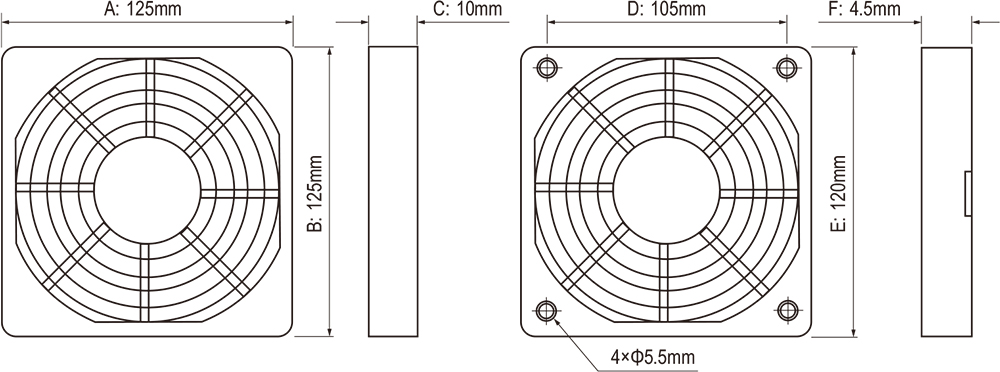

Art.No. | Fixing Hole Distance(D) | Size (A×B×C) | Fan Size can match |
TSS-F80B | 71.5mm | 87×87×10mm | 8025,8038 |
TSS-F92B | 82.5mm | 96×96×10mm | 9225,9238 |
TSS-F110B | 89mm | 115×115×10mm | 11025,11038 |
TSS-F120B | 105mm | 125×125×10mm | 12025,12038 |
TSS-F150B | 122mm | 156×156×10mm | 15050 |
TSS-F172B1 | 162mm | 177×155×10mm | 17050 |
TSS-F172B2 | 162mm | 177×177×10mm | 1725 |
TSS-F180B | 166mm | 207×207×10mm | 18065 |
TSS-F200B | 166mm | 207×207×10mm | 20060,22580 |
