General Specification

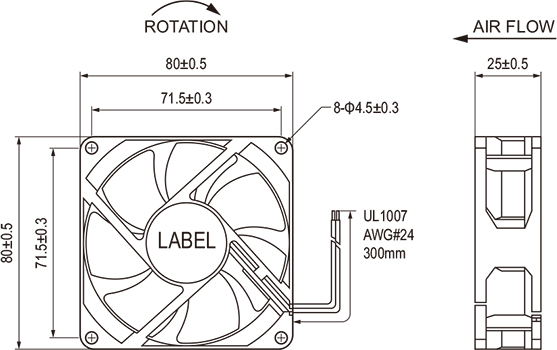

Size: 80×80×25mm
Frame / Impeller: Plastic
Lead Wire: AWG#24 or Equivalent (+)Red, (-)Black
Ball Bearing 50,000Hrs(40°C)
Sleeve Bearing 30,000Hrs(40°C)
Operating temperature: -10°C~+70°C
Storage temperature: -40°C~+70°C
Art. No. | # | Rated | Operating | Input | Input | Speed | Air Flow Air | Max Static Pressure | Noise | Weight | ||
(CFM) | m3/min | Inch-H2O | mm-H2O | |||||||||
8025EC | Ball | 110-220 | 110-265 | 0.013-0.027 | 3 | 2800 | 35.31 | 1.00 | 0.159 | 4.04 | 31.0 | 58.0 |
