General Specification

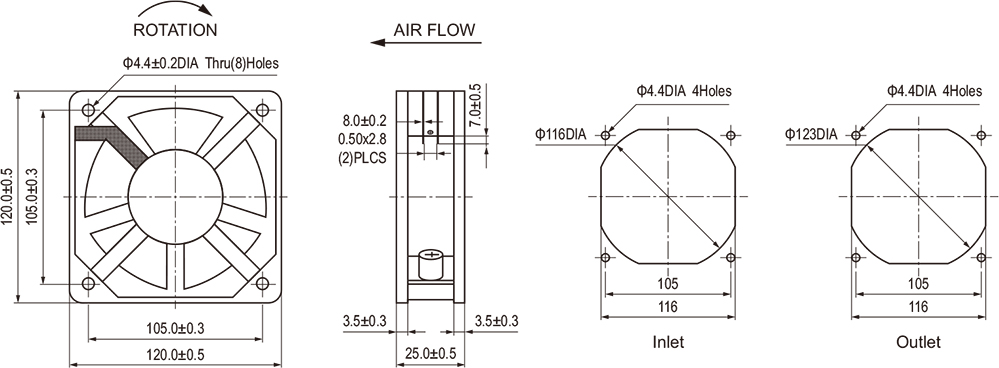

Size: 120×120×25mm
Airflow: 50-150CFM
Noise: 27~552dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#22
Operation Temperature: -10°C~+65°C
Art. No. | Bearing | Voltage | Current | Power | Speed | Noise (dBA) | Air Flow Air | |
M3/hr | CFM | |||||||
NA12025-ECB | Ball | 110-220 | 0.25 | 21 | 2300-2700 | 39/42 | - | 57/66 |
"B" means Ball, the current and the speed and airflow can be customer made. Sleeve type also can do.
